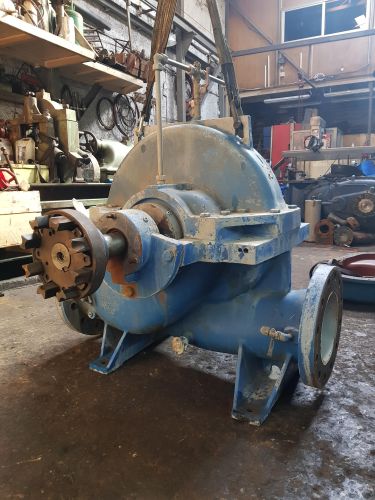

In this detailed case study, we present a thorough overhaul procedure for KSB Type 250/600 pumps, emphasizing the meticulous steps taken to ensure optimal performance and longevity. The process encompasses disassembly, visual assessment through sandblasting, inspection for damages, coating application, manufacturing of crucial components, replacement of consumables, and precision reassembly.

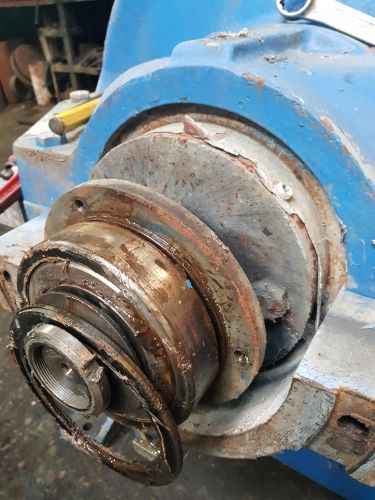

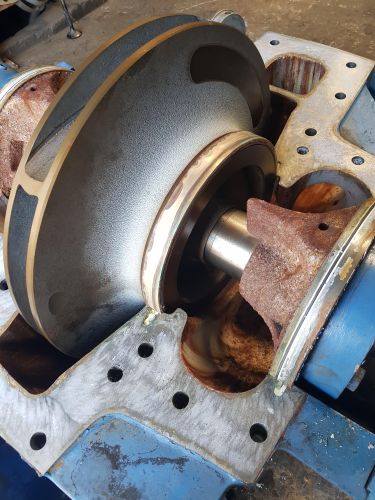

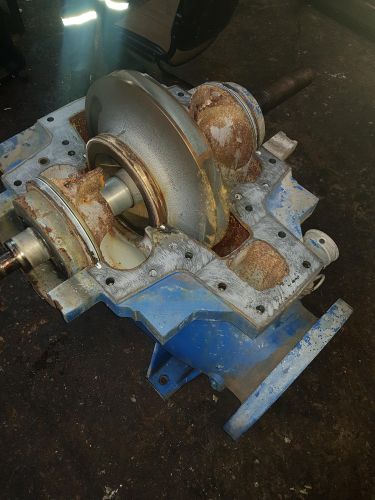

Disassembly: We initiate the overhaul by carefully dismantling all components of the KSB Type 250/600 pump. This includes the impeller, casing, mouth rings, bearings, and mechanical seals. Each part is methodically removed to facilitate a comprehensive inspection.

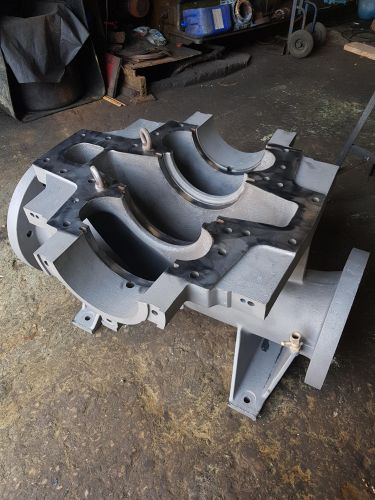

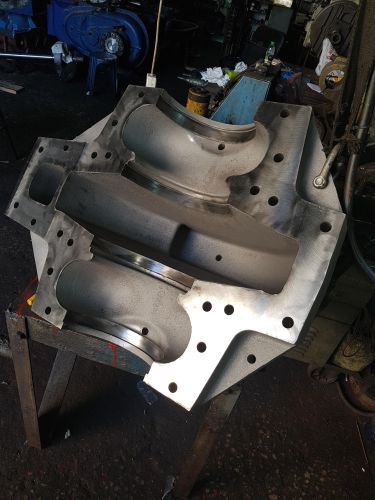

Visual Assessment through Sandblasting: To enhance the visual clarity of potential damages, all disassembled parts undergo a thorough sandblasting process. This meticulous step allows for a detailed examination of surfaces, aiding in the identification of cracks, erosion, or wear.
Inspection for Cracks and Damages: Following the sandblasting process, each component is subjected to a rigorous inspection to identify cracks, damages, or signs of wear. This step is critical for determining the extent of repairs needed and ensuring the pump's reliability.
Coating Application on Pump Casing: The pump casing undergoes a coating process designed for freshwater applications. This protective coating not only enhances the durability of the casing but also provides resistance against corrosion, extending the pump's operational life.

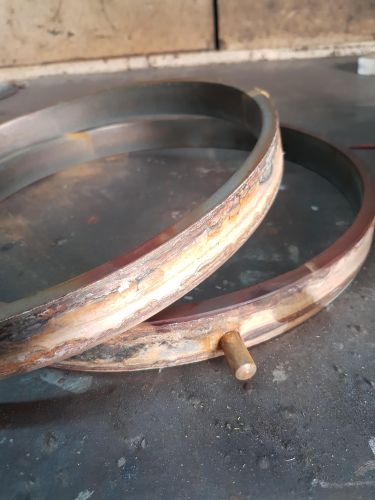

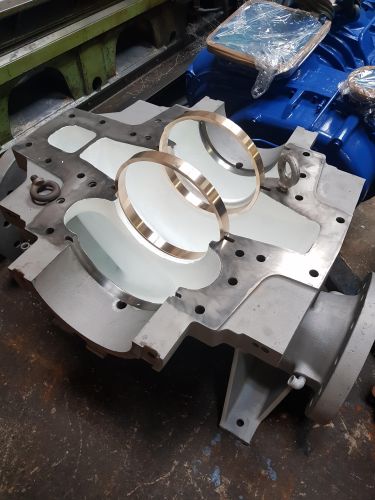

Manufacturing of New Mouth Rings: In instances where wear or damages are detected, new mouth rings are meticulously manufactured to precise specifications. This ensures a perfect fit and optimal performance, addressing any issues related to impeller and mouth ring contact.
Machining of Impellers' Mouth Ring Contact Diameters: To maintain efficiency and hydraulic performance, the impellers' mouth ring contact diameters are carefully machined. This step is essential for achieving the required clearances and minimizing friction between moving parts.
Replacement of Consumable Parts: All consumable parts, such as bearings and mechanical seals, are replaced with high-quality components. This proactive approach ensures reliable operation and minimizes the risk of future failures.

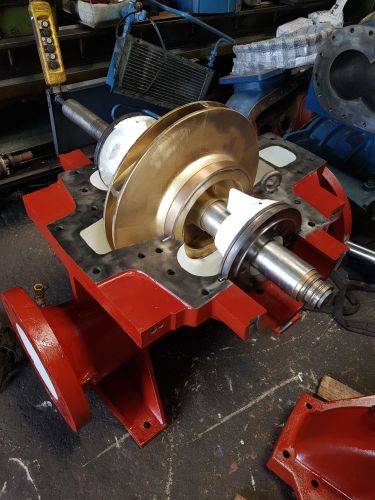

Reassembly with New Inox Bolts: The pump is reassembled using new inox bolts, ensuring structural integrity and corrosion resistance. The use of stainless steel bolts enhances the pump's overall durability and reduces the risk of deterioration over time.

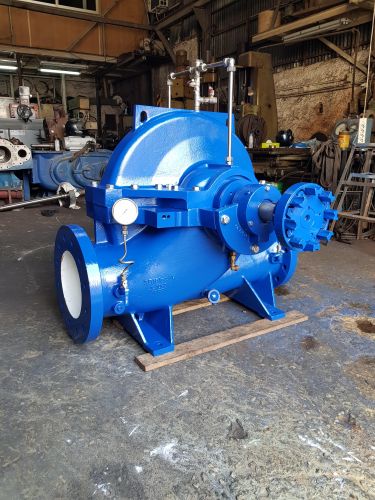

Pressure Test: Before finalizing the overhaul process, the pump undergoes a rigorous pressure test to validate the effectiveness of the repairs. This step ensures that the pump is ready to operate under normal working conditions without any leakage or performance issues.
Conclusion: By adhering to this comprehensive overhaul procedure, we ensure that KSB Type 250/600 pumps are restored to optimal condition, promoting longevity, reliability, and efficiency in their operation. This meticulous approach reflects our commitment to delivering high-quality pump repair services.
